DJI RC Plus Controller for Matrice 30/300 RTK/350 RTK

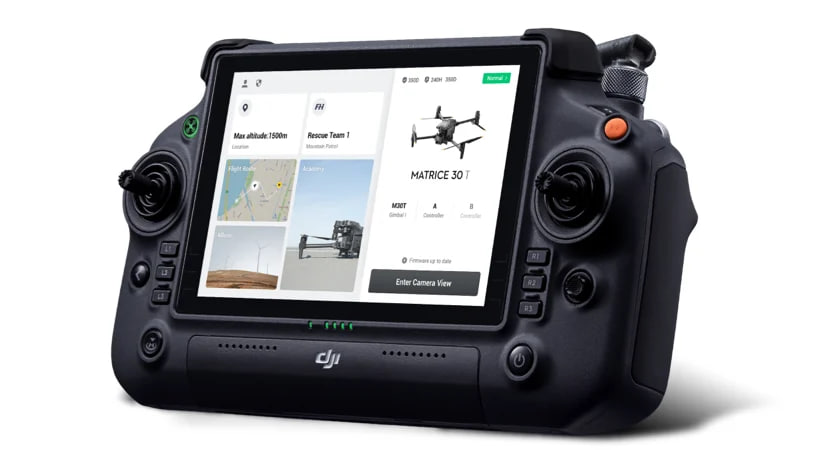

The DJI RC Plus Remote Controller is a groundbreaking advancement in drone operation technology, crafted to meet the rigorous demands of industry professionals across a spectrum of applications, including public safety, inspection, and commercial piloting. This controller is not just limited to the Inspire 3; it extends its compatibility to a wide range of DJI drones, such as the Matrice 350 RTK, Matrice 300 RTK, and Matrice 30 Series, offering unparalleled versatility. Featuring a 7-inch high-bright screen with a resolution of 1,920×1,200 and maximum brightness of 1,200 cd/m², the DJI RC Plus ensures crisp and clear visuals even under direct sunlight, enhancing situational awareness and operational efficiency.

Weatherproof Design

Rugged and Ready:The DJI RC Plus is the epitome of durability, boasting an IP54 rating that guarantees protection against dust ingress and water splashes from any direction. It’s crafted to withstand extreme environmental conditions, with an operational temperature range of -20 to 50 °C (-4° to 122° F). This weatherproofing ensures that drone operators can carry out missions confidently, regardless of challenging weather scenarios.

Intuitive Physical Buttons

Enhanced Control at Your Fingertips:One of the standout features of the DJI RC Plus is its array of intuitive physical buttons, which provide quick and easy access to the drone’s essential functions. This design choice allows pilots to build muscle memory and execute commands efficiently, significantly enhancing the flight experience, especially in critical mission scenarios where every second counts.

Hot-Swappable Batteries

Uninterrupted Operations:The DJI RC Plus introduces hot-swappable battery technology, enabling pilots to replace batteries without powering down the controller. With batteries that last for almost six hours of flight time, this feature is crucial for long-duration missions, ensuring continuous operation and minimal downtime. The inclusion of a 65W USB-C port also allows for charging during use, further enhancing operational readiness.

Enhanced Connectivity

Stable and Secure Connection:Featuring a quad-antenna design, the DJI RC Plus ensures a stable and secure connection with your drone up to 15 kilometers away. For operations in environments with signal interference, the controller offers two significant connectivity enhancements:

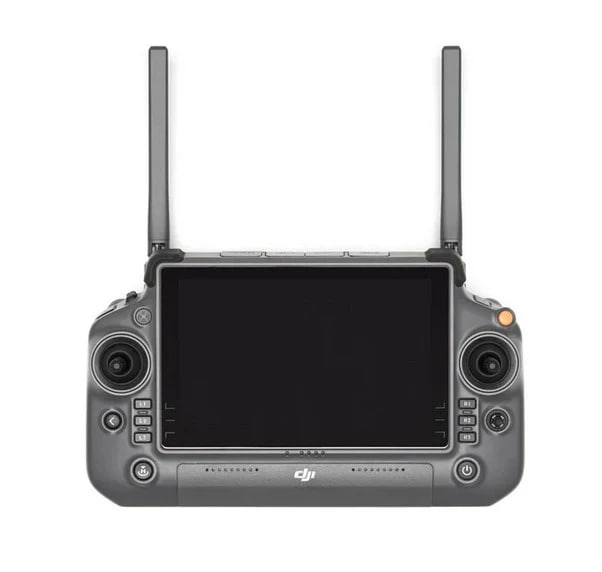

• Removable Antennas: Operators have the flexibility to remove the top two antennas and attach customized solutions to enhance range and video feed clarity.
• Upgradable 4G Module: An optional DJI Cellular Module can be added for reliable connectivity in remote areas or complex environments. This 4G dongle ensures that operators maintain control and receive video feeds even when traditional signals falter.

The DJI RC Plus Remote Controller is not just a tool but a comprehensive solution designed to meet the evolving needs of modern drone operations. Its combination of weatherproofing, intuitive controls, hot-swappable batteries, and enhanced connectivity options makes it an indispensable asset for professionals relying on drones for critical missions and creative projects.

Professional pilots have high expectations for their remote controllers, and the new DJI RC Plus remote controller exceeds those expectations. A 7-inch-wide high-definition screen with exceptional brightness allows pilots to view more visual information on the DJI RC Plus, allowing them to fly more efficiently. Because the DJI RC Plus, like the M30 drone, is IP54 rated, it may be used in severe rain without being damaged.

Specifications

• Screen
  • 7.02 inch LCD touchscreen
  • Resolution: 1920×1200 pixels
  • Brightness: 1200 cd/m²
• Internal Battery
  • Type: Li-ion (6500 mAh @ 7.2 V)
  • Charge Type: Supports battery station or USB-C charger (max 65W, 20V)
  • Charge Time: 2 hours
  • Chemical System: LiNiCoAIO₂
• External Battery (WB37 Intelligent Battery)
  • Capacity: 4920 mAh
  • Voltage: 7.6 V
  • Battery Type: Li-ion
  • Energy: 37.39 Wh
  • Chemical System: LiCoO₂
• Operating Time
  • Internal Battery: Approx. 3 hours 18 min
  • Internal Battery + External Battery: Approx. 6 hours
• Ingress Protection Rating
  • IP54
• GNSS
  • GPS, Galileo, BeiDou
• Operating Temperature
  • -20° to 50° C (-4° to 122° F)
